Constitue:

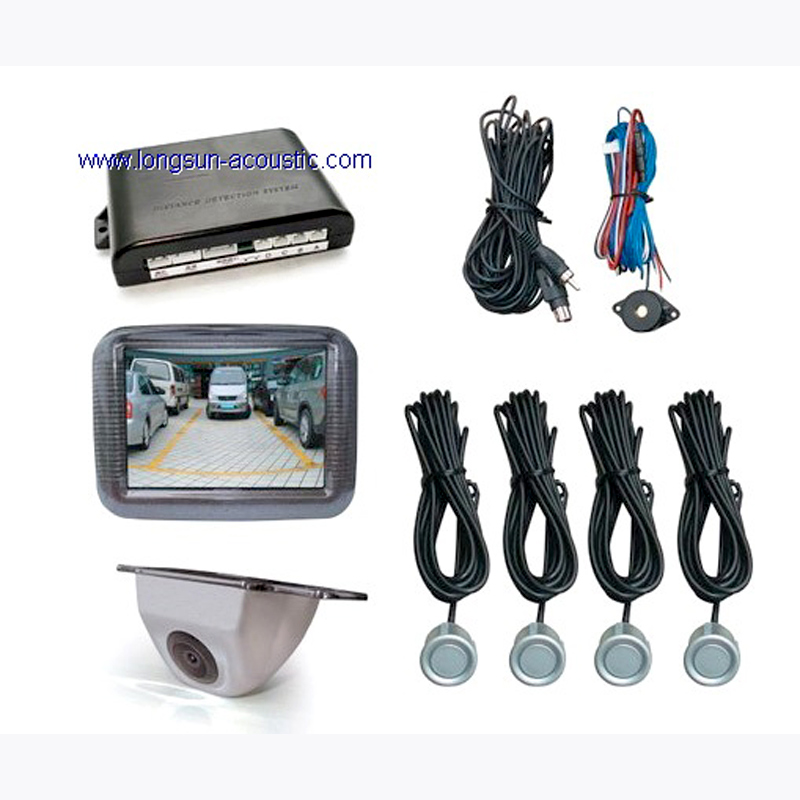

1 control box, 4 sensors, 1 camera, 1 TFT monitor, 1 buzzer, a string power lines
Function:
A. audible indication
(1)1.50m—0.80m: Bi,Bi,Bi
(2)0.80m—0.40m: Bi,Bi,BiBi (the closer, the faster)
(3)0.40m—0.00m: BiBi… (continuous beeping)
B. visual indication
(1) 2.50m—0.30m: the objects will be showed distinctly on screen, and it will display the distance between the objects and vehicle.It will display the image of the obstacle.
(2)0.30m—0.00m: display 000 and must to stop
(3) Flashing arrow on left or right indicate the orientation of objects
Technical specification:
Working voltage: (1)10V—15V; (2)24V
Working current: ≤200mA
Max Power: ≤4W
Ultrasonic frequency: 40KHz
Working temperature: -30℃— +70℃
Alarming volume: ≥85dB
Alarming distance:1.50—0.10m
Display distance: 2.50—0.30m
Image sensor: CMOS 1030
TV system: NTSC/PAL
Horizontal resolution: 420 line
Effective pixels: N:510×496pixels/ P:628×586pixels
Lens angle: 170°
Sync model: Internal sync
Lens: F:3.6mm/2.8mm
For more details, please contact us.
