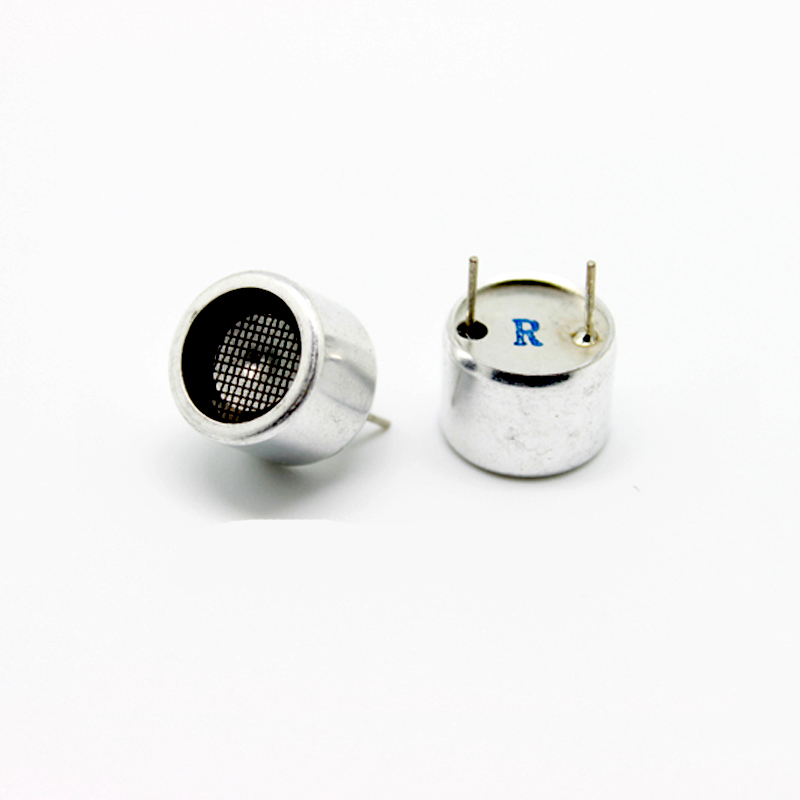

40KHz Φ10x10mm  ultrasonic transducer
40KHz Φ10x10mm  ultrasonic transducer 40KHz Φ10x10mm  ultrasonic transducer 40KHz Φ10x10mm  ultrasonic transducer

40KHz Φ10x10mm ultrasonic transducer

Product ID : LSPU1040OAH10
Product Tags : Open Structure transducer
Product Attributes :

*Open structure and fission

*Compact and light weight

*High sensitivity and sound pressure

*Less power consumption

*High reliability

Product Description

Applications:

People Detection

Automated Store Displays

Booths & Kiosks

Lithium Battery Applications

Solar Powered Applications

Remote Monitoring Stations

Non-Contact Detection

Shipping systems

Mobile Robotics

Chemically Hazardous Locations

Tank Level Measurement

Freight Management Systems

Liquid Level Control

Tide/Water Level Monitoring

Dimensioning & Positioning

Long Range Object Detection

Proximity Detection

Security Systems



Technical parameter:

Construction: open structure

Using Method:  transmitter / receiver

Center Frequency: 40 ± 1.0KHz

Sound Pressure Level: 112 dB min. (10v/30cm)

Sensitivity:  -70dB min./V/μ bar

Capacitance: 2400pF ±  20% at 1KHz

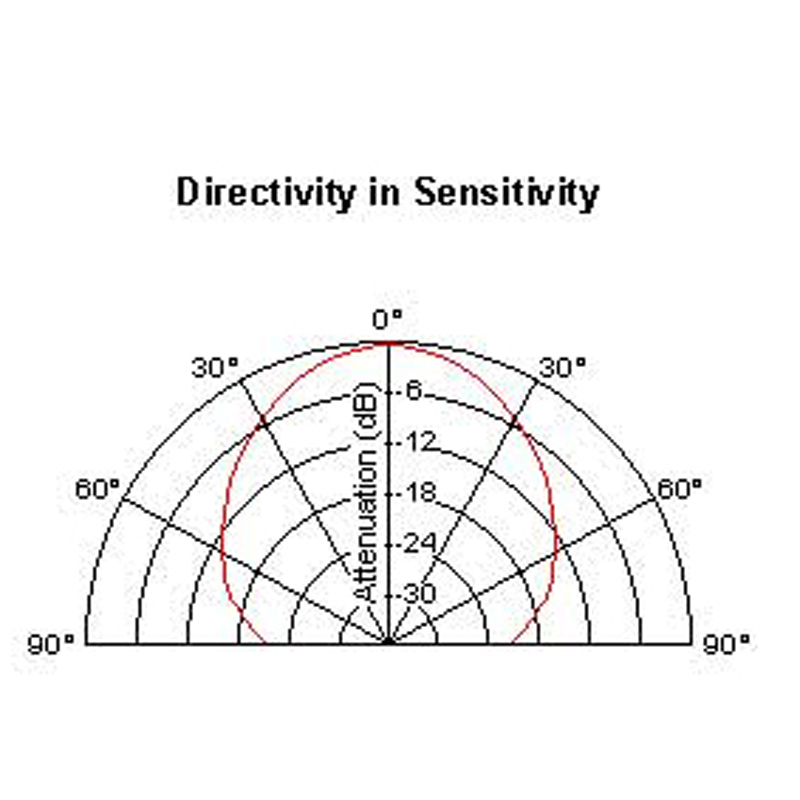

Directivity: 80 ±  15 degree

Detectable range: 0.2 ~ 3m

Housing Material: aluminum



For more details, please contact us.
