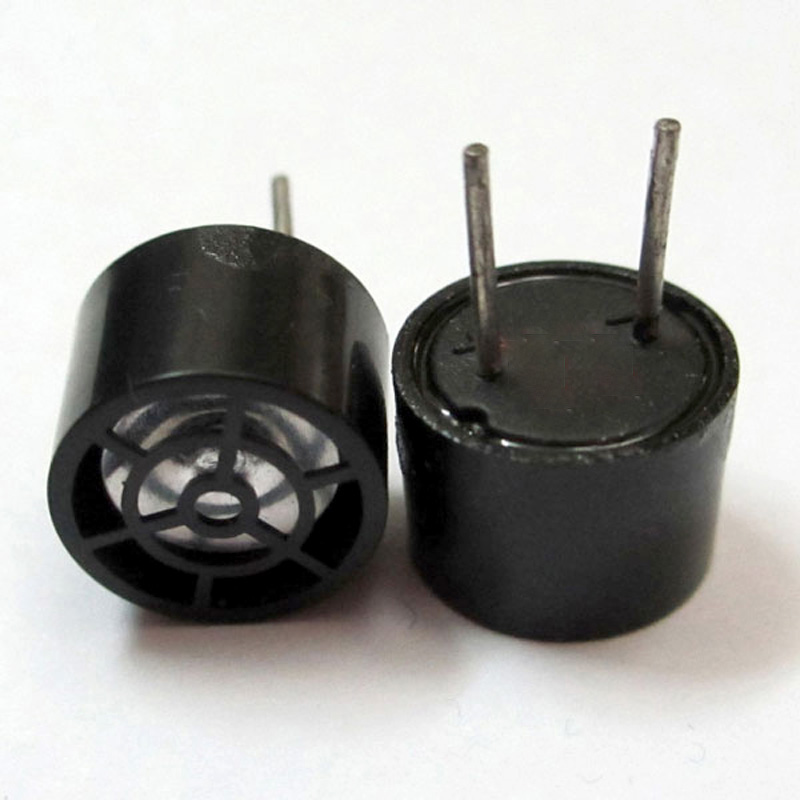

40KHz Φ10mm plastic housing dual use ultrasonic transducer
40KHz Φ10mm plastic housing dual use ultrasonic transducer 40KHz Φ10mm plastic housing dual use ultrasonic transducer 40KHz Φ10mm plastic housing dual use ultrasonic transducer

40KHz Φ10mm plastic housing dual use ultrasonic transducer

Product ID : LSPU1040OPH07-1
Product Tags : Open Structure transducer
Product Attributes :

*Open structure and dual use

*Compact and light weight

*High sensitivity and sound pressure

*Less power consumption

*High reliability



Product Description

Applications:

People Detection

Automated Store Displays

Booths & Kiosks

Lithium Battery Applications

Solar Powered Applications

Remote Monitoring Stations

Non-Contact Detection

Shipping systems

Mobile Robotics

Chemically Hazardous Locations

Tank Level Measurement

Freight Management Systems

Liquid Level Control

Tide/Water Level Monitoring

Dimensioning & Positioning

Long Range Object Detection

Proximity Detection

Security Systems



Technical parameter:



Construction: open structure

Using Method:  dual use

Center Frequency: 40 ± 1.0KHz

Sound Pressure Level: 110 dB min. (10v/30cm)

Sensitivity:  -70dB min./V/μ bar

Capacitance: 2200pF ±  25% at 1KHz

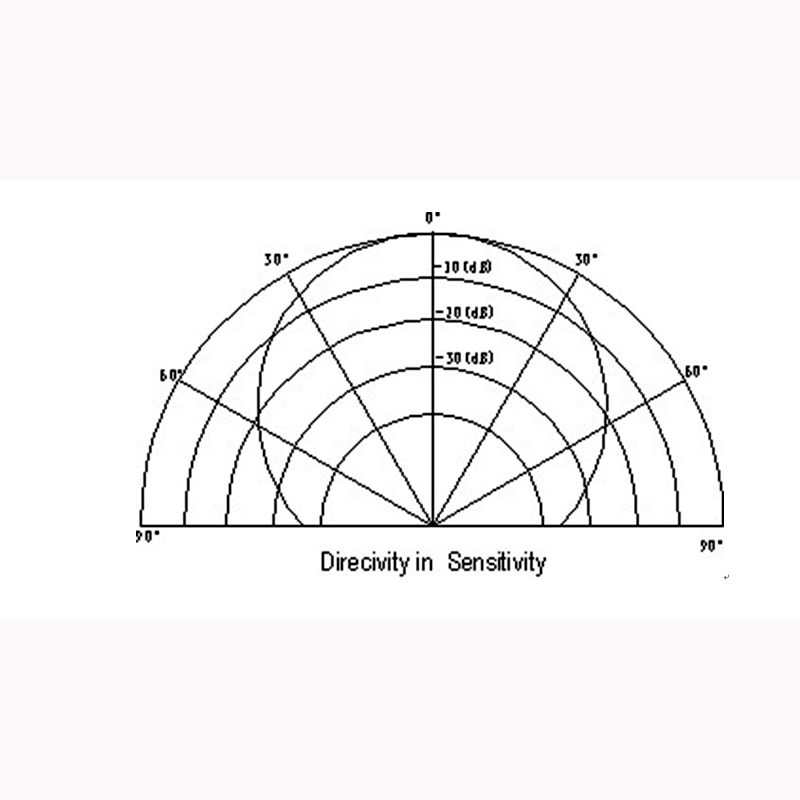

Directivity: 70 degree

Detectable range: 0.2 ~ 6m

Housing Material: ABS



For more details, please contact us.
