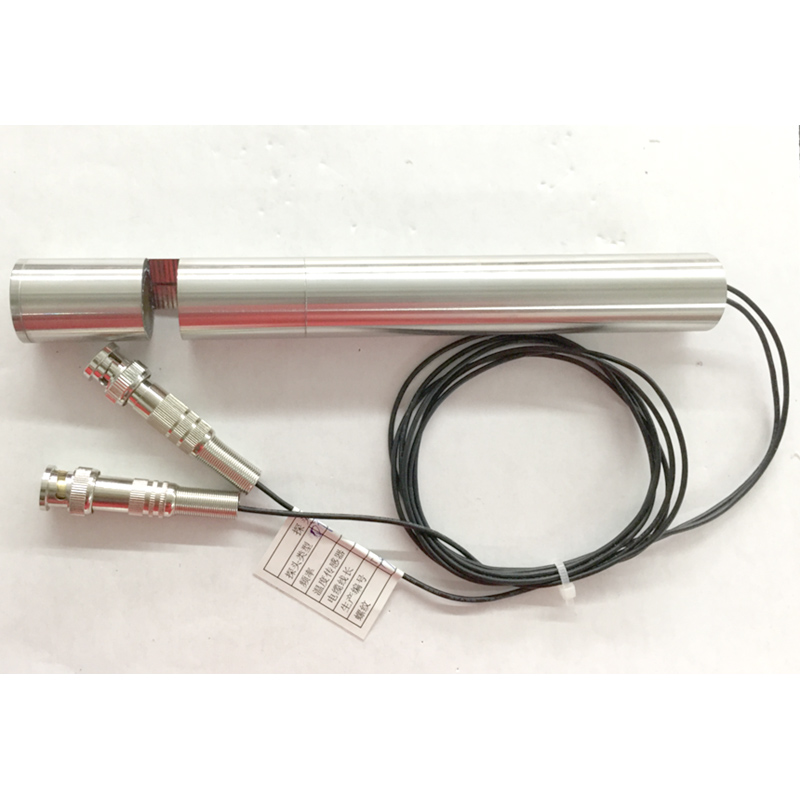

65KHz Φ25mm industry control ultrasonic transducer
65KHz Φ25mm industry control ultrasonic transducer 65KHz Φ25mm industry control ultrasonic transducer 65KHz Φ25mm industry control ultrasonic transducer

65KHz Φ25mm industry control ultrasonic transducer

Product ID : LSPU2565FAIH206D
Product Attributes :

*Rugged sealed construction;

*Cylindrical design, easy for installation;

*Short-range measurement capabilities

Product Description

Application:

ultrasonic gas flow meter, liquid density check, wind speed and direction, distance ranging etc



Technical parameter:

Construction: rugged sealed

Center Frequency: 65KHz ± 5%

Mini. Resistance: 17000Ω ± 20%

Capacitance: 450pF ± 20% @1KHz

Sensitivity: Ehco signal 20V(-62dB) @0.3m, 24Vpp

Max. Input Voltage:  less than 1000Vpp

Working temperature: -40~+80℃

Pressure: ≤30Kg or 3MPa

Protection Class: IP68

Housing Material: stainless steel

Gross weight: 440g ± 5%

Wiring instructions: ‘+’ red, ‘-’ white, black: shielded cable



 For more details, please contact us.
