*Open structure and fission
*Compact and light weight
*High sensitivity and sound pressure
*Less power consumption
*High reliability
Applications:
People Detection
Automated Store Displays
Booths & Kiosks
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Long Range Object Detection
Proximity Detection
Security Systems
Technical parameter:
Construction: open structure
Using Method: transmitter / receiver
Center Frequency: 32 ± 1.0KHz
Sound Pressure Level: 115 dB min. (10v/30cm)
Sensitivity: -68dB min./V/μ bar
Capacitance: 2500pF ± 20% at 1KHz

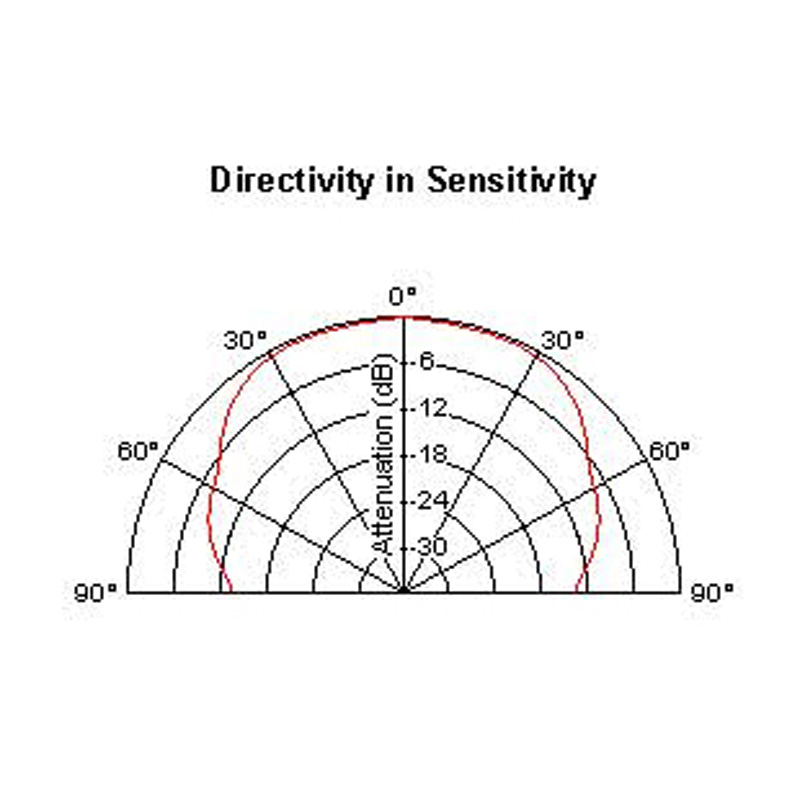

Directivity: 60 ± 15 degree
Detectable range: 0.2 ~ 15m
Housing Material: aluminum
For more details, please contact us.
