*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Applications:
People Detection
Automated Store Displays
Booths & Kiosks
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Long Range Object Detection
Proximity Detection
Security Systems
Technical parameter:
Construction: waterproof
Using Method: dual use
Center Frequency: 300 ± 15.0KHz
Sensitivity: ≥ 800mV (driver signal: 200Vp-p, 300KHz, at 20cm)
Capacitance: 300pF ± 20% at 1KHz

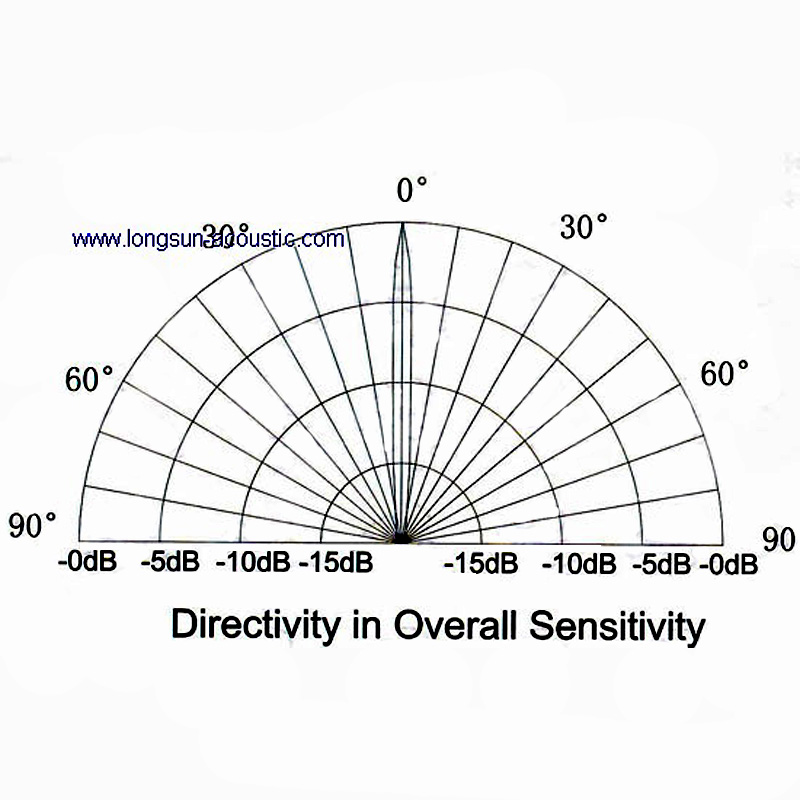

Directivity: 10 ± 2 degree
Max. input voltage: 400Vp-p
Detectable range: 0.04 ~ 1m
Protection class: IP65
Housing Material: aluminium
For more details, please contact us.
