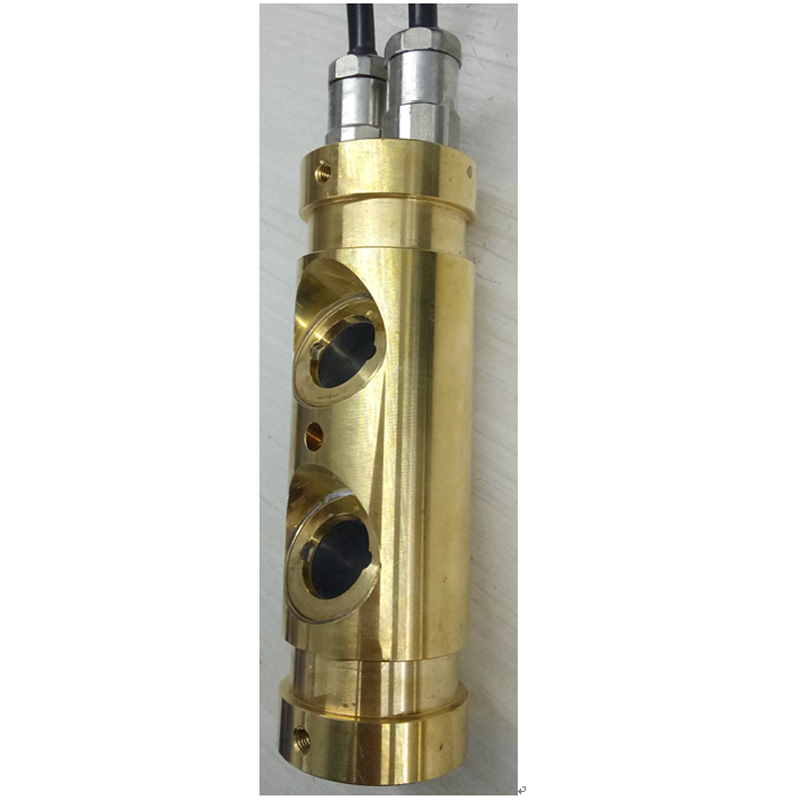

1MHz Φ45mm waterproof industry control ultrasonic transducer
1MHz Φ45mm waterproof industry control ultrasonic transducer 1MHz Φ45mm waterproof industry control ultrasonic transducer 1MHz Φ45mm waterproof industry control ultrasonic transducer

1MHz Φ45mm waterproof industry control ultrasonic transducer

Product ID : LSPU451MFAIH140D
Product Attributes :

*Rugged sealed construction;

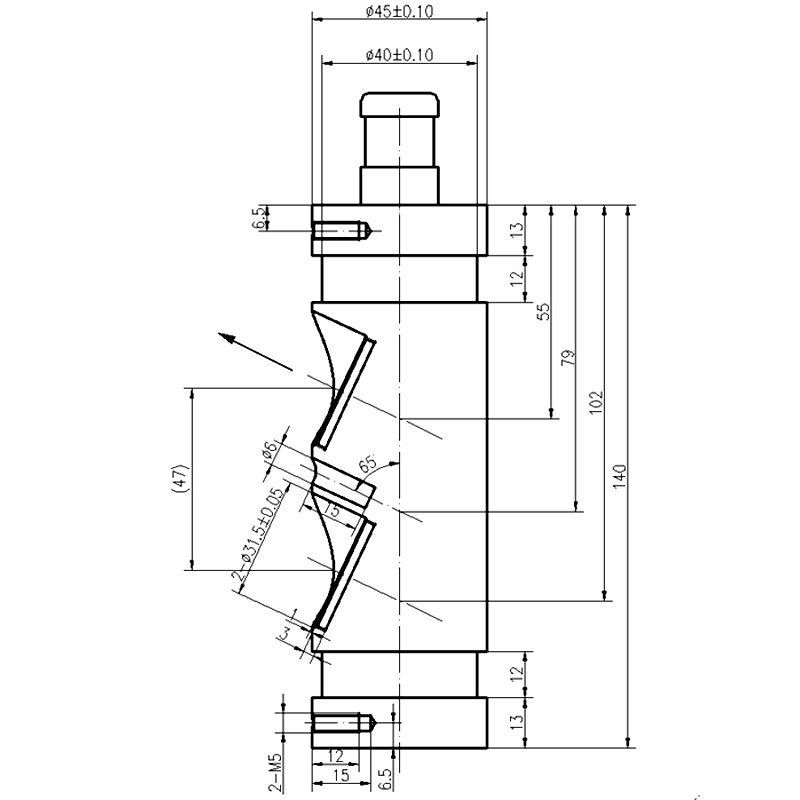

*Cylindrical design, easy for installation;

*Short-range measurement capabilities

Product Description

Application:

ultrasonic gas flow meter, wind speed and direction, distance ranging etc



 Technical parameter:

Construction: rugged sealed

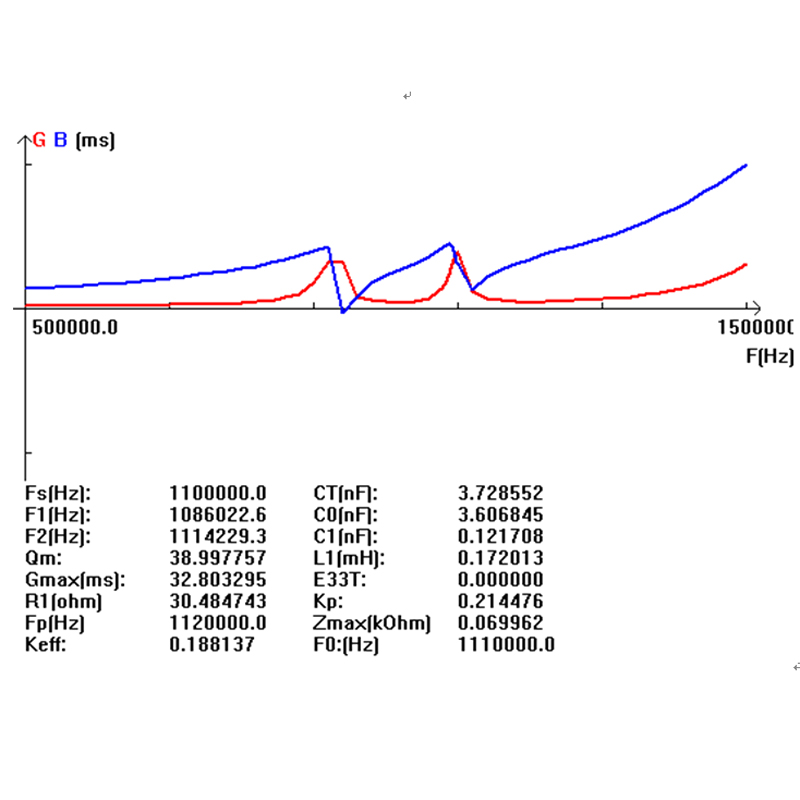

Center Frequency: 1MHz ± 5%

Mini. Resistance: 25Ω ± 20%

Capacitance: 3800pF ± 20% @1KHz

Sensitivity: Ehco signal 800mV(-62dB) @0.3m, 24Vpp

Max. Input Voltage:  less than 300Vpp

Working temperature: -40~+80℃

Pressure: ≤30Kg or 3MPa

Protection Class: IP68

Housing Material: H62

Gross weight: 3700g ± 5%

Wiring instructions: ‘+’ red, ‘-’ white, black: shielded cable
