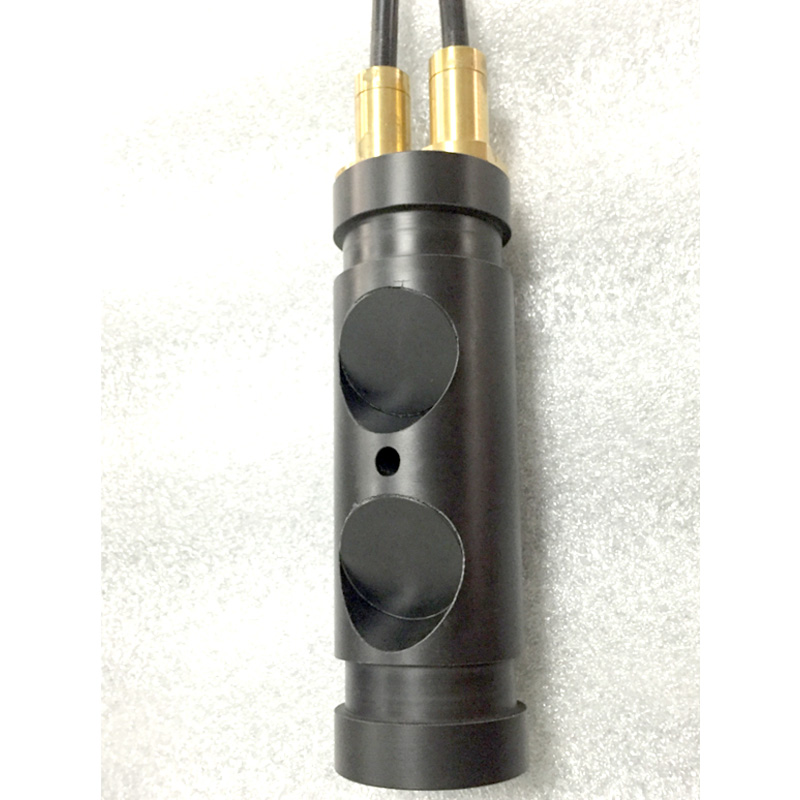

1MHz Φ45mm industry control ultrasonic transducer
1MHz Φ45mm industry control ultrasonic transducer 1MHz Φ45mm industry control ultrasonic transducer 1MHz Φ45mm industry control ultrasonic transducer

1MHz Φ45mm industry control ultrasonic transducer

Product ID : LSPU451MFPIH140D
Product Attributes :

*Rugged sealed construction;

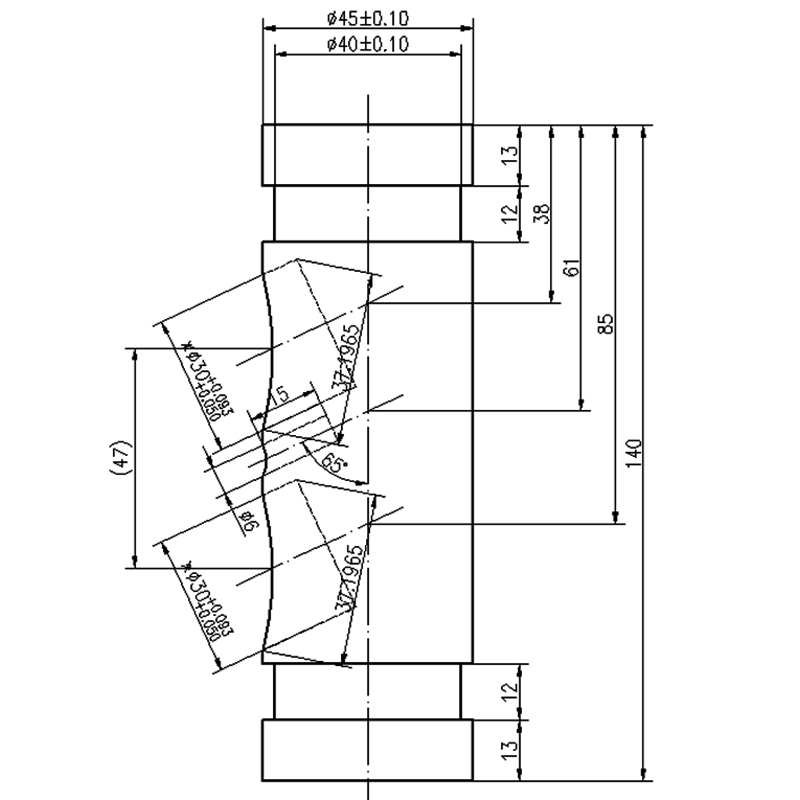

*Cylindrical design, easy for installation;

*Short-range measurement capabilities

Product Description

Application:

ultrasonic gas flow meter, wind speed and direction, distance ranging etc

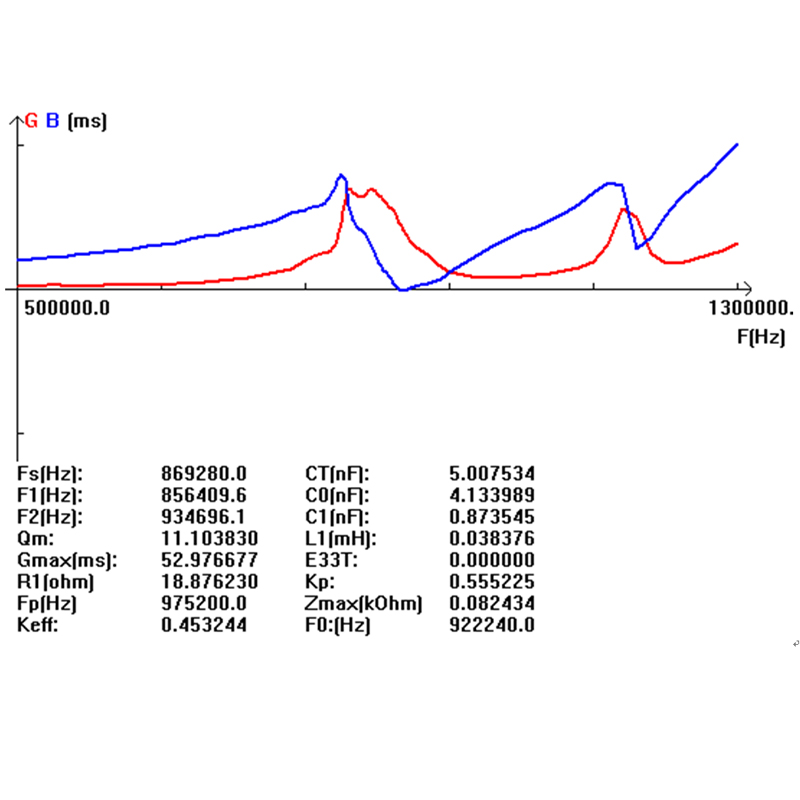

 Technical parameter:

Construction: rugged sealed

Frequency: 1MHz ± 5%

Mini. Resistance: 15Ω ± 20%

Capacitance: 4500pF ± 20% @1KHz

Sensitivity: Ehco signal 800mV(-62dB) @0.3m, 24Vpp

Max. Input Voltage:  less than 300Vpp

Working temperature: -40~+80℃

Pressure: ≤10Kg or 1MPa

Protection Class: IP68

Housing Material: plastic

Gross weight: 2550g ± 5%

Wiring instructions: ‘+’ red, ‘-’ white, black: shielded cable



 For more details, please contact us.
